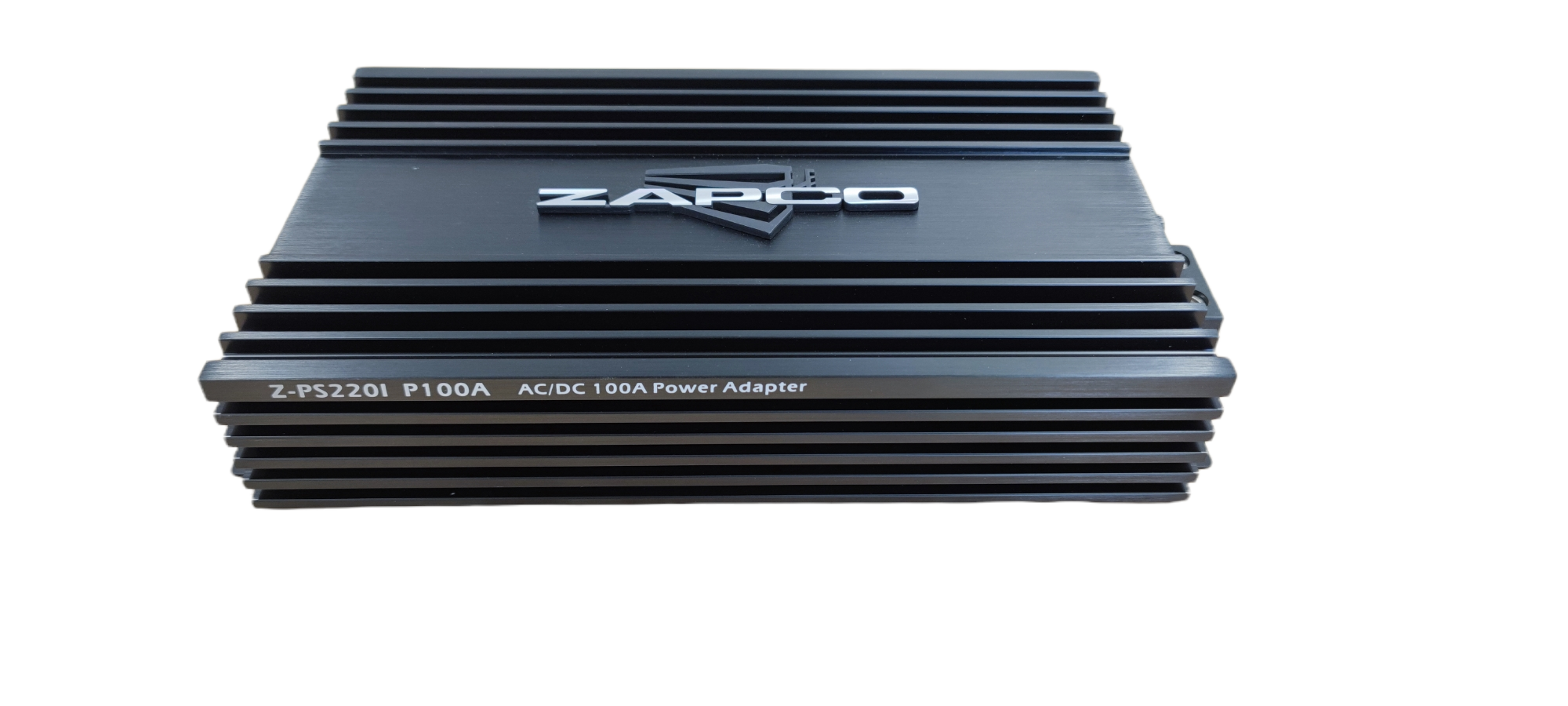

ZAPCO Z-PS220I P100A

3 999,00 kr

Adjustable regulated output voltage from 9V~16V
Remote panel-mount Volt Meter to monitor the output
Up to 100 Amps of current

Units are ”strappable” to combine up the 4 units, and provide up to 400 Amps of current. Each unit includes the connection cable for strapping multiple supplies

Temperature controlled cooling fans
Thermal shut-off protection
Over-current protection
Pulse charging to inhibit battery sulfating (overcharging)

Design: Switching Type
Input Voltage 220V AC±10%
Input Frequency 50Hz~60Hz
DC Output Adjustable 9V~16V DC ±0.5V
Output Current 100 Amps DC Continuous (Maximum)
Line Regulation < ±5% Load Regulation < ±5% Fuse 10A/250V (Input Voltage: 220V) Output Ripple 150 mV RMS Protection Temperature 75°C Overload Protection: UL more than 105 Amps Cable UL 14 AWG Dimensions (mm): 190(W) x 62(H) x 313(L) Car Audio champions have been winning with Zapco amps for over 40 years. This year we give audio enthusiasts a new product that is both an accessory to the system and a tool for competitions. A low noise, high efficiency AC to DC power converter made to Zapco's standards to drive Zapco amplifiers (or other DC powered devices) from a standard 220V AC outlet. Each one provides 100 amps of DC current variable from 9V to 16 V, and multiple supplies can be "strapped" to give you up to 400 amps of current. Whether it is in a workshop, office, home, or at a competition venue. Whether you want to keep your battery strong in audio competitions, save your battery during long tuning sessions, set up a test bench to evaluate audio systems, or compare the performance of your car amplifier to that of your home amplifier. These supplies will give you all the current you need, and housed in the Zapco competition chassis, they will look sharp doing it. About Z-PS power supplies The Zapco P100A supplies were designed for maximum efficiency and versatility. ​It can be used in conjunction with a battery or multiple batteries safely (example). The regulated pulse charging system adjusts the power supply's output to match your battery's needs without over-charging. ​The variable output voltage control lets you have the perfect voltage for your particular application's needs. You can have a little as 9 volts out to as much as 16 volts. Most automotive systems will be operating at between 13.5 and 14.4 volts when the engine is running. If you are making measurements of an amps performance it is critical to know exactly what the operating voltage is. For added accuracy, each Zapco P100A supply has a digital panel mount voltage meter included so you can constantly monitor the output. If your system needs more current, you can "strap" up to four of the P100A supplies (example) to get up to 400 amps of operating current and the "master" supply will control the output of all the supplies in the circuit so they will always be perfectly matched.

Artikelnr: 5b8c98705299 Kategorier: , Varumärke:

100a 9-16v ut.
OBS, de är svarta nu.
Fungerar till alla batterier, Blysyra, AGM, Gele, Lifepo, LTO
Levereras tyvärr med Engelsk kabel, så man måste köpa en från Clas Ohlson eller Kjell och kompani.

Units are ”strappable” to combine up the 4 units, and provide up to 400 Amps of current. Each unit includes the connection cable for strapping multiple supplies
