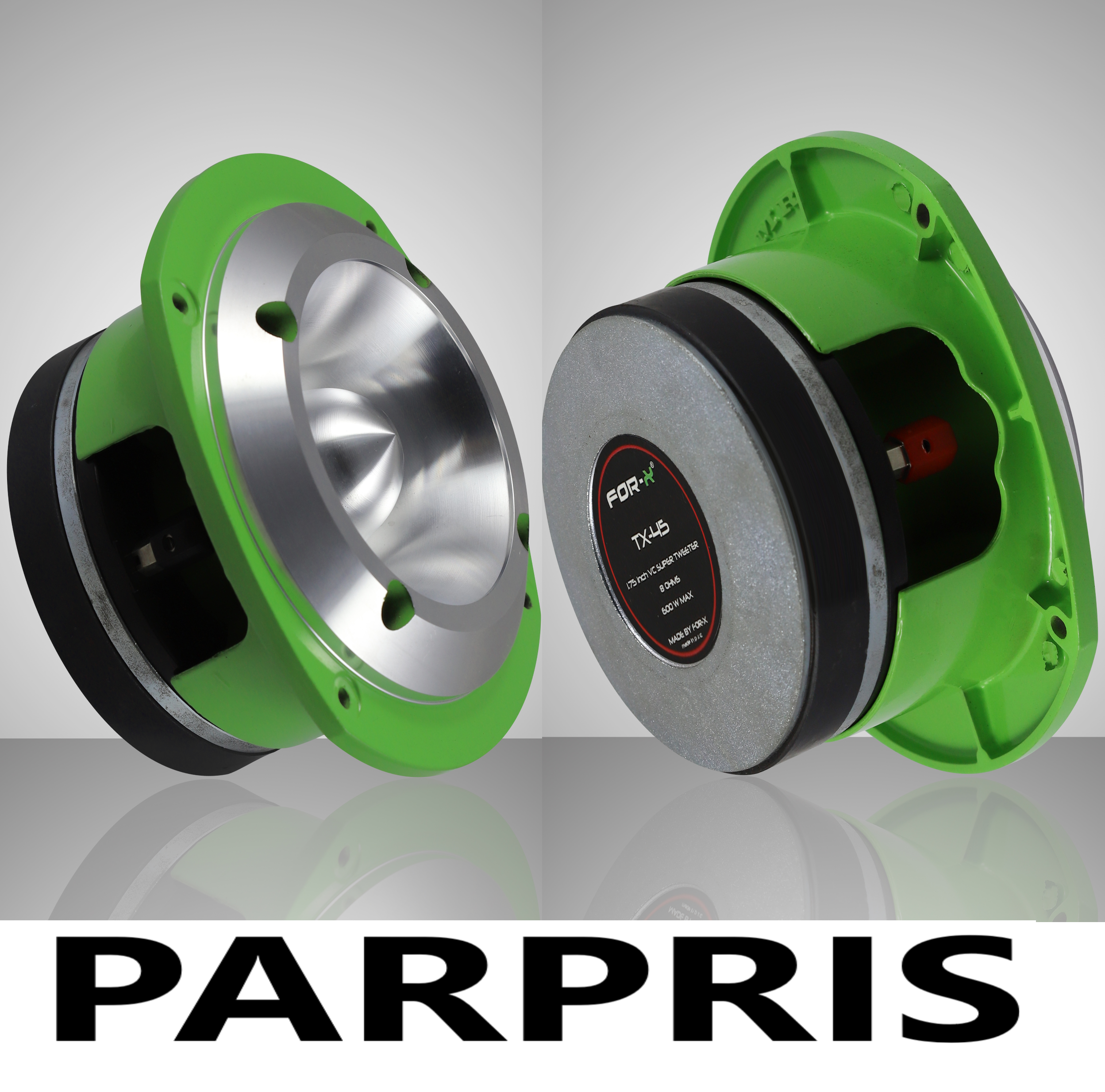

FOR-X TX-45

FOR-X TX-45

1 499,00 kr

TESTED 20201010
Fs: 4800hz
Effective range 4000-22000hz
SPL 1w/1m 102dB
Wrms with hipassfilter: +250
Filter normal listening in car 8500hz 6dB capacitor 3,3uf
Screaming doors 8000hz 18dB

General Data
Overall Dimensions DxH (140*122) *83
Nominal Power Handling 300 W
Maximum Power 600 W
Sensitivity 101 db
Frequency Response 3.5k-20k Hz
Cone Material Aluminium
Net Weight 1.67 kg

Electrical Data
Nominal Impedance 8 ohm
DC Resistance 5.6 ohm

Voice Coil and Magnet Parameters

Voice Coil Diameter 44.4 mm
Voice Coil Height 2.5 mm
HE magnetic Gap Height 6 mm
Voice Coil bobbin Kapton
Voice Coil Wire CCAR
Number of Layers 2L
Magnet System Type High Flux Ferrite

Resonant Frequency 3.5kHz

Artikelnr: 2ce5cef5731a Kategorier: , Varumärke:

Säljer i par.

1.5″ VC Super Tweeter Impedance _ 8 Ohm
Max Power _ 600W
RMS Power _ 300W
Frequency Response _ 3,5-20 kHZ
With Crossover
A clean signal is a must, we recommend using AB amps
