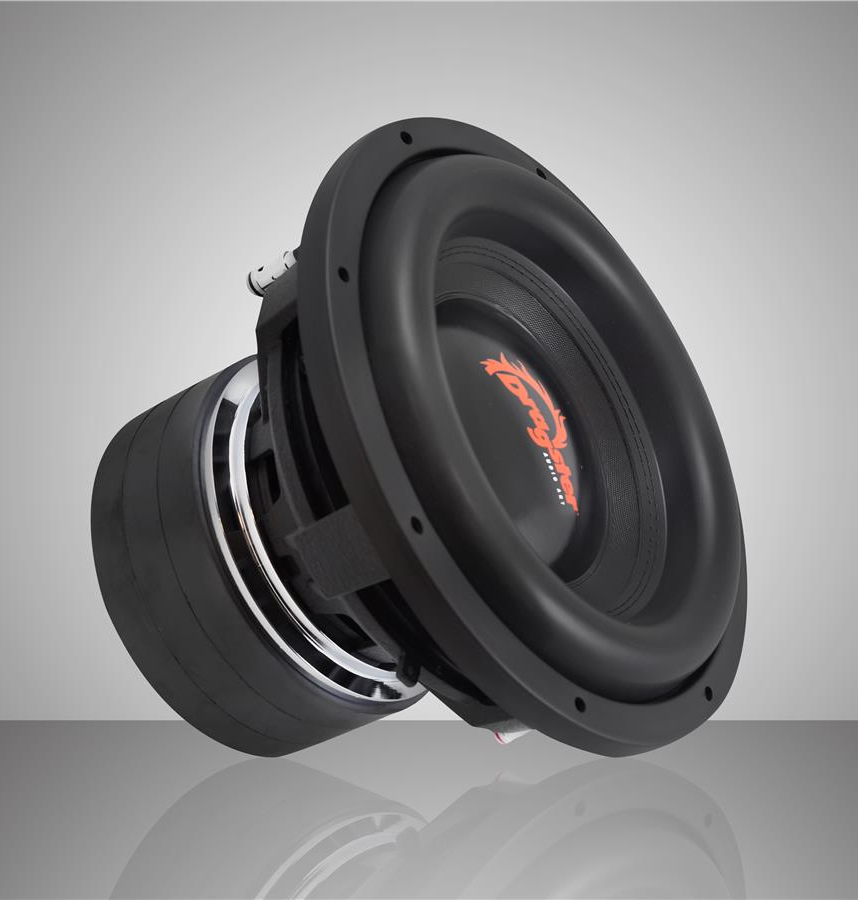

DRAGSTER DWX-12SPL

Electrical Data
Nominal Impedance Dual 2 ohm
DC Resistance Dual 1.5 ohm

Voice Coil and Magnet Parameters
Voice Coil Diameter 76.5 mm
Voice Coil Height 64.7 mm
HE magnetic Gap Height 20 mm
Max Linear Excursion 22.35 mm
Voice Coil bobbin Black Aluminium
Number of Layers 8L
Magnet System Type High Flux Ferrite
BL Product 21.06 N.A

T-S Parameters
Suspension Compliance 0.045
Mechanical Q Factor 6.01
Electrical Q Factor 0.6
Total Q Factor 0.55
Moving Mass 367.1
Eq.Cas Air Load ( liters) 14.43 L
Resonant Frequency 38 Hz
Effective Piston Height 471.4 cm^2
