499,00 kr

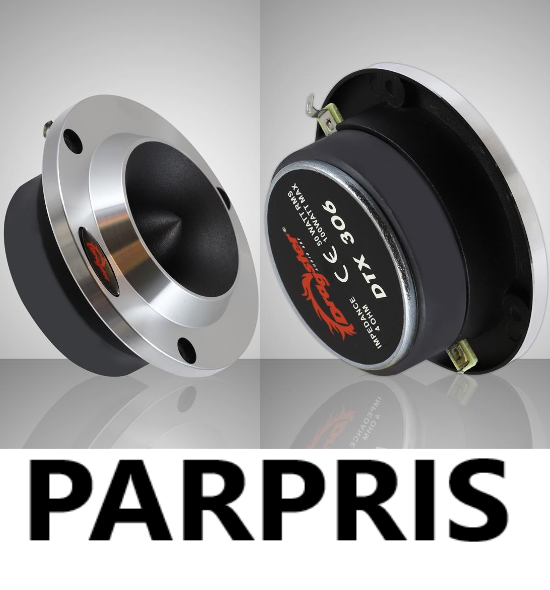

Titanium SuperTweeter
50W RMS, 100W MAX,
KVC 25mm or 1”
Magnet 6 Oz
Mounting depth 30mm
A clean signal is a must, we recommend using AB amps.
Effective range 2400-19000hz
Filter normal listening in car >8000hz 6dB capacitor 3,3uf
Filter medföljer
voice coil mm(inch) 25 (1″)
diaphragm material titanium
power RMS/MAX Watt 50/100
efficiency dB 104
frequency response Hz 2000 ~ 20k
impedance Ohm 4
magnet material ferrite
magnet weight Oz 6
magnet dimension mm N/A
construction material die cast Al
protection circuit YES
overall dimension mm 96×30
mounting hole mm 73
depth mounting mm 30
Nominal Impedance 4 Ohm
Power Capacity 50 RMS W
Sensitivity 106dB
Frequency Range 2kHz-20kHz
Voice Coil Diameter 25.4mm
Voice Coil Material Round Copper Wire
Voice Coil Former KSV
Diaphragm Material Titanium
Housing Material Aluminum
The DTN/DTX series is probably the most advanced selection of tweeter designed for high-end car audio systems.
High efficiency, huge power, different shape and dimensions, all of the offered tweeters are at the top of worldwide market.
Any one of the 15 models is carefully studied for best performance to be a part of fantastic audio systems
with a final result much more than you can expect.
Säljer i par.
