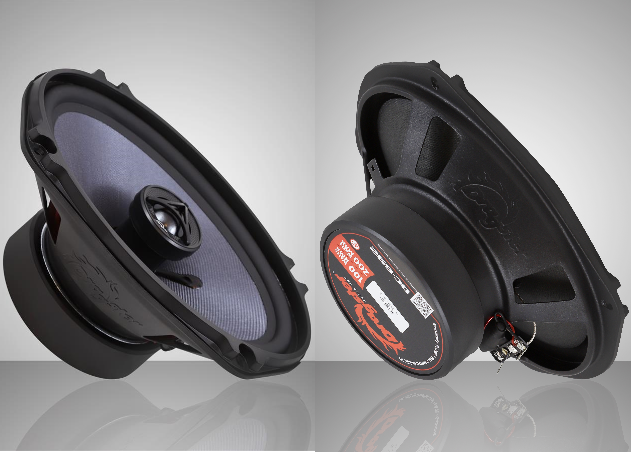

DRAGSTER DC-692

Electrical Data

Nominal Impedance 4 Ohm
DC Resistance 3.2 Ohm
Voice Coil Diameter 38,6 28,3 mm
Voice Coil Height 15 1,8mm
HE Magnetic Gap Height 6 2mm
Max.Linear Excursion 4,5 mm
Voice Coil bobbin Kapton Aluminum
Voice Coil Wire Copper CCAW Copper
Number Of Layers 2 layers
Magnet System Type Hi. Flx Ferr. Neodymium
BL Product 7,14

T-S Parameters

Suspension Compliance Cms 0.543
Mechanical Q Factor Qms 5.38
Electrical Q Factor Qes 0.39
Total Q Factor Qts 0.37
Moving Mass Mms 21,8
Eq.Cas Air Load( liters) VAS 24,8Liter
Resonant Frequency Fs 46 Hz
Effective Piston Area SD 212,5 cm²
