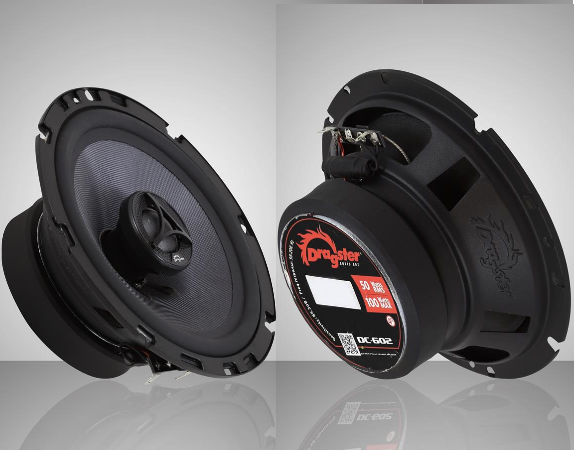

DRAGSTER DC-602

Electrical Data

Nominal Impedance 4 Ohm
DC Resistance 3.2 / 3.6 Ohm
Voice Coil Diameter 30.5 / 25,4mm
Voice Coil Height 10,5 / 1.5mm
HE Magnetic Gap Height 5 / 2mm
Max.Linear Excursion 2.75 mm
Voice Coil bobbin Kapton / Aluminium
Voice Coil Wire Copper / CCAW
Number Of Layers 2 layers
Magnet System Type Hi. Flx Ferr. / Neodymium
BL Product 5,7

T-S Parameters

Suspension Compliance Cms 0.53
Mechanical Q Factor Qms 8,9
Electrical Q Factor Qes 0.53
Total Q Factor Qts 0.5
Moving Mass Mms 13,8
Eq.Cas Air Load( liters) VAS 14,66 Liter
Resonant Frequency Fs 58 Hz
Effective Piston Area SD 138 cm²
