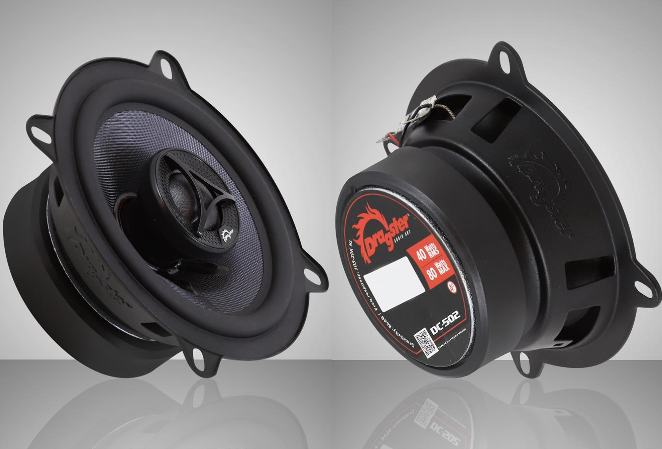

DRAGSTER DC-502

DRAGSTER DC-502

829,00 kr

Electrical Data

Nominal Impedance 4 Ohm
DC Resistance 3,6 Ohm
Voice Coil Diameter 30.5 / 25,4 mm
Voice Coil Height 8.1 / 1.5mm
HE Magnetic Gap Height 4 / 2mm
Max.Linear Excursion 2.05 mm
Voice Coil bobbin Kapton / Aluminum
Voice Coil Wire Copper / CCAW
Number Of Layers 2 layers
Magnet System Type Hi. Flx Ferr. / Neodymium
BL Product 4,18

T-S Parameters

Suspension Compliance Cms 0,31
Mechanical Q Factor Qms 5.85
Electrical Q Factor Qes 0.88
Total Q Factor Qts 0.76
Moving Mass Mms 7,31
Eq.Cas Air Load( liters) VAS 2.73 Liter
Resonant Frequency Fs 105Hz
Effective Piston Area SD 78,5 cm²

Artikelnr: 887bf47c9712 Kategorier: , Varumärke:

Overall Dimensions 130*67 mm
Nominal Power Handling 40 W
Transient Power 10ms 80 W
Sensitivity 86 dB
Frequency Response 105-20K Hz
Cone Material Fiberglass Silk
Net Weight 0.7 kg
Mounting depth 53mm
vendor code SP-A5
Speaker type Coaxial acoustics
The size 5 ”(13cm)
RMS power 50 watts
PMPO power 220 watts
Voice coil 1 ”(2.54cm)
Resistance 4 ohm
frequency range 70 – 20 kHz
Sensitivity (1W / 1m) 88 dBA
Diffuser material Polypropylene
Suspension material Rubber
Basket material Steel
Magnetic system Ferrite
Mounting diameter 112 mm
Mounting Depth 59 mm
Tweeter dome Mylar
Protective mesh Included
Par
