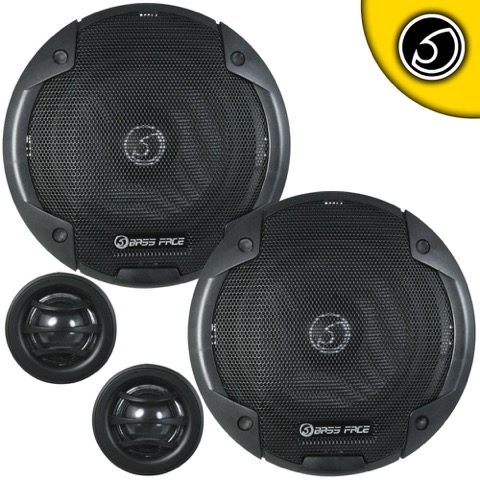

BASSFACE BLACKSPL5C.1

1 195,00 kr

Cast Aluminium Basket Reduces Mechanical Distortion

Oversize 1.2” Voice Coil For High Power Handling

High Power Crossover With Hi-Freq Attenuation Switch

Extra VC Cooling Vents Decrease Power Compression

Woven Black Fibre Cone Provides Superior Dynamics

Large Single Roll Non Fatiguing Rubber Surround

Rigid Large Dustcap Increases Cone Stiffness

Large Clear Silk Dome Tweeter

High Magnetic Flux Motor Design

Sibilance Minimising Tweeter Protection

Engineered For SQ OEM Location Install Use

Full Speaker System Maximum Power (Watts) (Using Pair/Full Set Of Speakers Not Necessarily Included & Appropriate Crossover)

800

Full Speaker System RMS (Watts) (Using Pair/Full Set Of Speakers Not Necessarily Included & Appropriate Crossover)

400

Speaker Maximum Power (Watts) (One Speaker, Using Appropriate Crossover)

500

Speaker Maximum Power RMS (Watts) (One Speaker, Using Appropriate Crossover)

250

Speaker Overall Diameter With Lugs (mm)

150

Speaker Overall Diameter With Grilles (mm)

160

Speaker Overall Diameter (mm)

150

Speaker Magnet Diameter (mm) (Including Magnet Protector Where Applicable)

95

Speaker Installation Cutout Diameter (mm)

116

Speaker Grille Depth (mm)

25

Speaker Overall Depth (mm)

70

Speaker Mounting Depth (mm)

64

Speaker Front Protrusion From Mounting Plane (mm)

6

Speaker Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability)

45-23000

Speaker Impedance (Ohm) (Nominal)

4

Recommended Cable

PSC16.2 1.5mm2

Tweeter Overall Depth (mm)

30

Tweeter Overall Diameter (mm)

55

Tweeter Installation Cutout Diameter (mm)

50

Tweeter System Maximum Power (Watts) (Using Pair Of Tweeters Not Necessarily Included)

300

Tweeter System RMS (Watts) (Using Pair Of Tweeters Not Necessarily Included)

150

Tweeter Impedance (Ohm)

4

Whats in the box

2 x BLACKSPL5C.1 Midbass Speakers

2 x BLACK Tweeter Units Including Housing

2 x Crossover

2 x 1m Cable for Midbass

2 x 2m Cable

8 x Self Tapping Screws

8 x Speed Spire Nuts

Grill Glue

Product Net Weight (g) (For Pairs/Sets Weight Is Both/All Major Components)

2700

Complete Product Pack Weight (g)

3590

Retail Carton L (mm)

390

Retail Carton W (mm)

290

Retail Carton H (mm)

105

Artikelnr: 5645fed0a456 Kategorier: , Varumärke:

Our BLACK series speakers are bursting with audiophile build specs. Large KSV voice coils and oversize magnets increases magnetic force. Cast Aluminium baskets with extensive cooling for the VC provides a significant reduction in power compression, this means they play louder for longer with more power. Power compression is often overlooked at the price of significantly reduced output when running at high power, due to increased resistance from head build up in the motor assembly. This also affords the BLACK series speakers a much more open and natural sound.

We made the suspension as light weight as possible to still retain ample cone control. This gives the midrange units high sensitivity enabling them to be high effective across a broad spectrum of power amplifiers.

The tweeters use Neodymium magnets and ferrofluid cooling. This gives them a slimmer profile without loss of control. The domes are 100% pure silk with translucent finish, which we think looks splendid!

These are designed from the bottom up to impress even the most discerning ear. We are confident that these will surpass your expectations for even high end audio products.

The BLACKSPL5C.1 and BLACKSPL6C.1 both have higher power handling to thier Coaxial counterparts. With more advanced crossover networks allowing for different tweeter positions with a tweeter dip switch. Giving you -3db 0db and +3db notches. We also revised the components so only the best quality components make up the crossover, affording them more power handling an better frequency control.
